How to paint a bike frame (6 easy steps)

In this article, you will learn what a bike frame is, what kind of paint you can use on a bike frame, and how to paint a bike frame (6 easy steps).

If this post helps you, please share it!

Frames are the foundation of any bike and are frequently one of the most challenging pieces to rebuild. However, painting a bike frame is a simple task that can transform the look and feel of your ride. Furthermore, it’s a pleasant project that can be accomplished in a short amount of time. But how do you go about painting a bike frame?

In this article, you will learn what a bike frame is, what kind of paint you can use on a bike frame, and how to paint a bike frame.

To paint a bike frame, you must first practice, prepare the workspace, select the paint, disassemble the bike, sand the frame with sandpaper, tape out the portions you don’t want to get messy and apply two coats of paint and another to keep the bike rust-free, dry the paint, and then reassemble the bike.

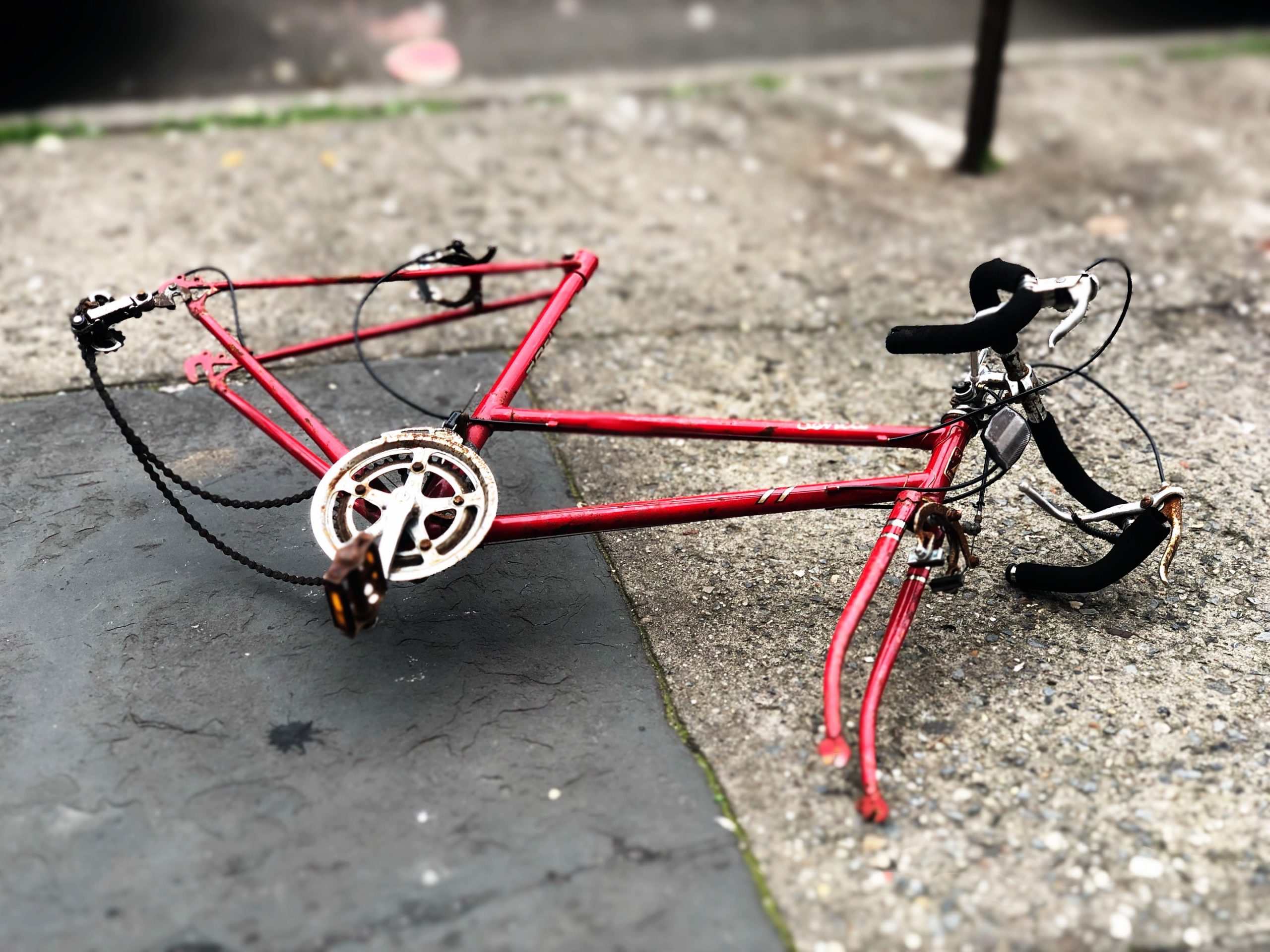

Image of a disassembled and old red bike frame. Source: lance grandahl, unsplash
Image of a disassembled and old red bike frame. Source: Lance Grandahl, Unsplash

What is a bike frame?

The frame is the main structural component of the bicycle and is typically constructed of steel, aluminum, titanium, or carbon fiber. A top tube, head tube, down tube, bottom bracket shell, seat tube, seat stays, and chain stays make up the frame (see image). A frameset is a combination of a frame and fork sold together.

What kind of paint do you use to paint a bike frame?

For bicycles, you can use Krylon’s Fusion All-in-One Spray Paint or Rust-Oleum Enamel Spray Paint. When you spray paint a bike, both finishes are shiny and can keep your bike from rusting.

What do you clean metal with before painting?

Before painting, use mineral spirits to remove grease and a rust-inhibitive primer to prepare new metal surfaces adequately. To guarantee good adhesion, remove dust with a clean, dry cloth; de-gloss the surface with moderate sanding; and wipe with mineral spirits on sound painted surfaces.

How do you prepare a bike frame for painting?

Check to make sure the frame is thoroughly clean. If it isn’t bare aluminum, steel, or carbon, sand it lightly so the paint has something to adhere to. Use 1,000 to 1,500-grit sandpaper to texture the surface—you don’t want to remove any material altogether.

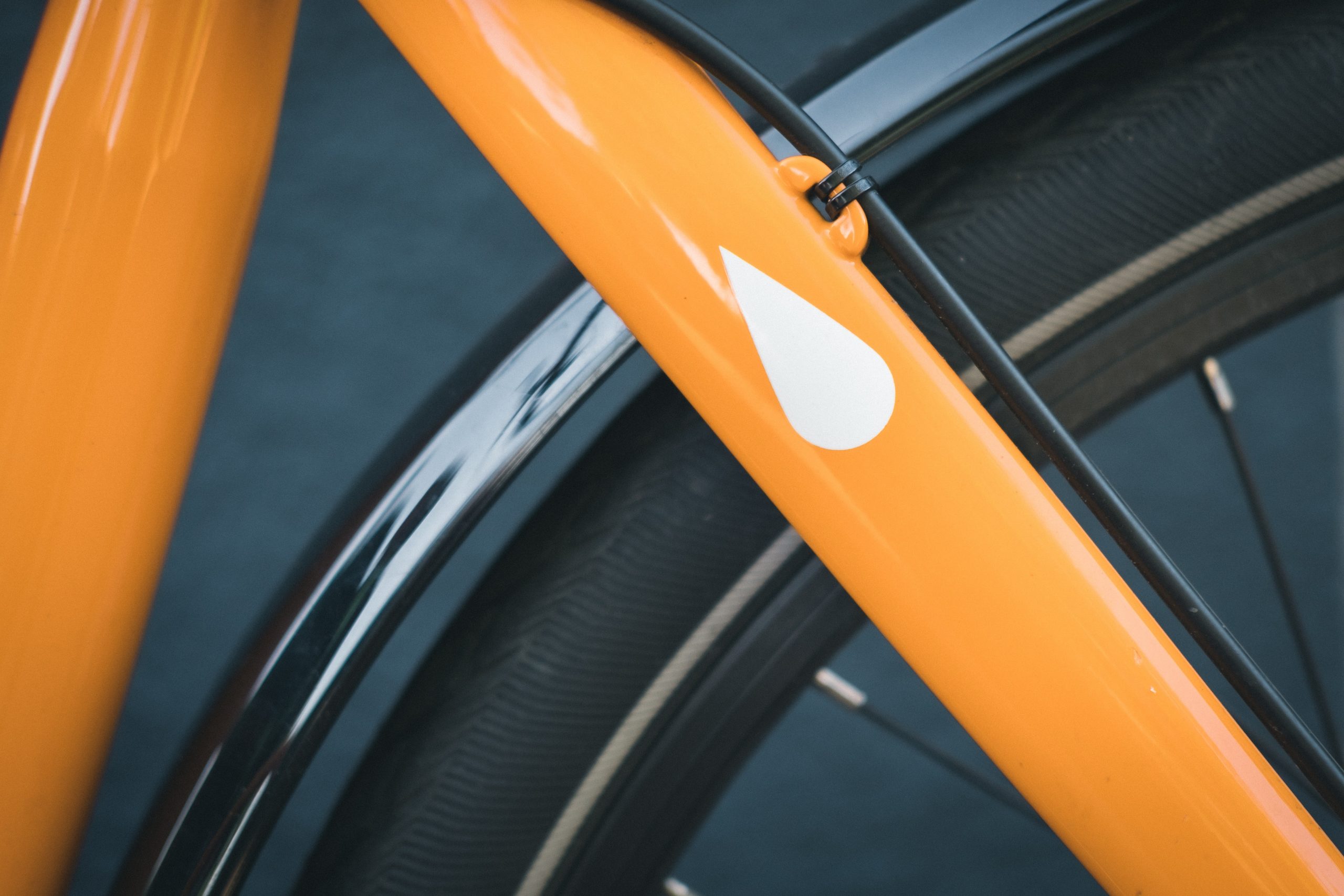

Image of a newly painted orange bike frame. Source: dan burton unsplash
Image of a newly painted orange bike frame with white drop design. Source: Dan Burton Unsplash

How do you paint a bike frame?

Below are the steps to paint a bike frame.

  1. Practice first

    If this is your first time painting a bike, or if you’re using a different paint than you did the last time, you should practice beforehand. You can experiment on a low-cost frame that you don’t mind ruining or even a low-cost metal tube.

  2. Prep the bike

    Make certain that the frame is ready to be painted. Clean it first with rubbing alcohol and a lint-free towel. Check to make sure the frame is thoroughly clean. If it isn’t bare aluminum, steel, or carbon, sand it lightly so the paint has something to adhere to. Use 1,000 to 1,500-grit sandpaper to texture the surface—you don’t want to remove any material completely.

  3. Pick your paint

    Check at your local art stores to choose a high-quality paint that will last. Look for a can with a low pressure—the slower the paint comes out, the easier it is to deal with. Whatever you choose, don’t mix brands or lines because various paints can react badly together.

  4. Break out the tape

    Tape off the parts of the frame that will have components attached, such as the bottom bracket, seat tube, head tube, and dropouts. You may also use tape to mask off portions of the bike when designing it—just make sure your base layer is totally dry first, or the paint will peel off with the tape.

  5. Set up your work station

    Though possible, painting your bike while holding it is inconvenient, so secure your frame so you can paint it without touching it. The head tube can be wedged into a dowel and clamped into a stand, or you can simply thread string or twine through the top tube and hang it from a rafter. You should also put down a drop cloth to capture any overspray.

  6. Spray

    Before using the can, shake it for three minutes. Then, look at the can to determine how close you should hold it when spraying. One coat of paint should be sprayed on evenly and evenly. While spraying, keep your hand moving at a steady speed.

    Take the weather into account as well. It is advised to paint in dry weather (most critical), especially in warmer weather with low humidity. Allow the paint to dry completely before layering various colors or applying a second coat.

If you want even more tips, watch this video called How To Custom Paint A Bike Like A Pro With Some Help From Fatcreations from the GNS Tech YouTube Channel.

A video called How To Custom Paint A Bike Like A Pro With Some Help From Fatcreations from the GNS Tech YouTube Channel.

Frequently asked questions (FAQs)

Below are some of the most commonly asked questions about painting a bike.

Can I paint my own bike frame?

Spray-painting a bike frame requires the ability to achieve a genuinely professional, uniformly applied finish that is durable enough to last. We’ve seen some nice-looking low-cost DIY projects, but it’s difficult to create a finish that properly showcases the craftsmanship of a valuable frame when you do it yourself.

Do you have to sand a bike frame before painting it?

Sand the bike frame to allow the new coat of paint to adhere. If the frame has thick or glossy paint, remove a lot of the previous paint with low-grit (rough) sandpaper. If the frame has a matte finish or is entirely bare, sand it with a high-grit (fine) sandpaper.

How much does it cost to paint a bike frame?

The typical starting price for painting a steel bike frame is $516, with prices ranging from $350 to $750. The final cost is more if extra colors and patterns are added or the bike is built of carbon fiber.

Is powder coating better than paint?

Powder coating outperforms wet paint in terms of resistance to chipping, scratching, and other damage because of the thermal bonding that occurs during curing and the ability to apply much thicker layers.

Do you have to remove all the old paint before repainting the metal?

Any old paint that is loose or pulling away must be completely removed before applying fresh metal paint. Removing such paint deposits requires wire brushing, scraping, and sanding.

Conclusion

When done correctly, painting a bike frame can be a simple operation. Use various colors to match your bike to your mood and fashion sense. It will keep your bike looking excellent at all times. Seek professional assistance if you encounter any problems.

In this article, we covered what a bike frame is, the kind of paint you can use on a bike frame, and some steps to paint a bike frame. Here are some key takeaways:

Key takeaways

  • The frame is the main structural part of the bicycle, commonly made of steel, aluminum, titanium, or carbon fiber.
  • You can use Krylon’s Fusion All-in-One Spray Paint for bicycles or the RUST-OLEUM Enamel Spray Paint.
  • To prepare new metal surfaces properly, use mineral spirits to remove grease and apply a rust-inhibitive primer before painting.
  • Primer and paint are two tools you need to ensure your bike frame is safe.
  • The paint job will make your bike look great and shine like new.

So did we cover everything you wanted to know? Let us know in the comments section below (we read and reply to every comment). If you found this article helpful, check out our full blog for more tips and tricks on how to buy a frame for a fixed gear. Thanks for reading, and stay fixed.
